分享一下我的creo配置文件

沧海明月 · 发表于 2025-12-14 18:15

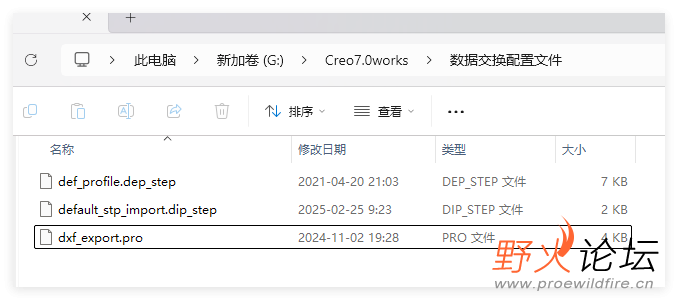

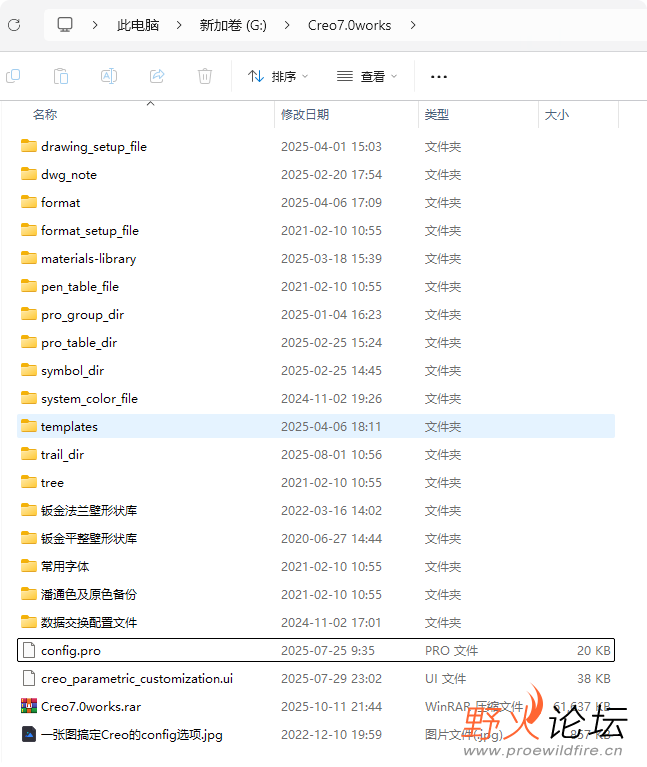

drawing.dtl

!绘图文本颜色
drawing_text_color EDGE_HIGHLIGHT_COLOR
!标注尺寸文本高度
text_height 3.500000
!公差文本显示大小
tol_text_height_factor 0.700000
tol_text_width_factor 0.700000
!文本粗细为0
text_thickness 0.000000
!设置文本宽度和高度的默认比值
text_width_factor 0.700000
!辅助视图注解默认格式A-A
aux_view_note_format VIEW %viewname-%viewname
!设置破断视图两部分之间的距离
broken_view_offset 5.000000
!剖面箭头长度
crossec_arrow_length 6.000000
!剖面箭头样式
crossec_arrow_style TAIL_ONLINE
!剖面箭头宽度
crossec_arrow_width 1.500000
!默认点显示样式为十字交叉点
datum_point_shape CROSS
!默认点显示大小
datum_point_size 1.000000
!设置尺寸引线的长度
dim_leader_length 5.000000
!默认注释文本字体为仿宋
default_annotation_font simfang.ttf
!符号样式
symbol_font LEGACY
!箭头为实心箭头
arrow_style FILLED
!箭头长度
draw_arrow_length 3.500000
!箭头宽度
draw_arrow_width 1.000000
!设置球标大小
max_balloon_radius 6.000000
min_balloon_radius 6.000000
!视图比例显示为小数
view_scale_format DECIMAL
!第一视角
projection_type FIRST_ANGLE
!最小角度尺寸
minimum_angle_dimension 1.000000

!视图默认显示样式为消隐
model_display_for_new_views NO_HIDDEN
!相切边显示为灰色
tan_edge_display_for_new_views TAN_DIMMED

!不忽略模型图层状态,保持工程图图层和模型图层状态同步
ignore_model_layer_status NO

!引线弯头长度
leader_elbow_length 3.000000
!显示公差
tol_display YES
!绘图单位
drawing_units MM
!默认详细视图名称样式为字母B
default_detail_view_name_style LETTER
!详细视图(局部放大图)显示圆圈
detail_view_circle ON
!视图比例显示样式为小数
view_scale_format RATIO_COLON
!默认表格列宽度
default_table_column_width 10
!默认表格列数
default_table_columns 4
!默认表格列行高
default_table_row_height 1
!默认表格行数
default_table_rows 2
!绘图图层不覆盖模型图层
draw_layer_overrides_model NO

draw_layers_new_model_show_all YES

create_area_unfold_segmented YES
def_view_text_height 0.000000
def_view_text_thickness 0.000000
def_view_text_height_scope VIEW_NAME_ONLY
def_view_text_thickness_scope VIEW_NAME_ONLY
default_view_label_placement TOP_CENTER
default_view_note_orientation NEXT_TO_AND_CENTERED_ABOUT_ELBOW
detail_circle_line_style SOLIDFONT
detail_circle_note_text DEFAULT
detail_view_boundary_type CIRCLE
detail_view_scale_factor 2.000000
half_view_line SYMMETRY_ISO
proj_view_note_format DEFAULT
view_note STD_DIN
view_scale_denominator 3600

shaded_view_scene DRAWING
clip_curves_in_local_full_xsecs YES
crossec_text_place AFTER_HEAD
crossec_type OLD_STYLE
cutting_line STD_ISO
cutting_line_adapt NO
cutting_line_segment 10.000000
cutting_line_segment_thickness 0.000000
def_xhatch_break_around_text YES
def_xhatch_break_margin_size 0.500000
default_show_2d_section_xhatch ASSEMBLY_AND_PART
default_show_3d_section_xhatch NO
draw_cosms_in_area_xsec NO
half_section_line SOLID
remove_cosms_from_xsecs ALL
show_offset_section_seams ANGLED_ONLY
show_quilts_in_total_xsecs NO
show_total_unfold_seam NO
hidden_tangent_edges DEFAULT
hlr_for_datum_curves YES
hlr_for_pipe_solid_cl YES
hlr_for_threads YES
location_radius DEFAULT(2.)
mesh_surface_lines ON
hlr_multithreading YES
pipe_insulation_solid_xsec NO
thread_standard STD_JIS
weld_light_xsec NO
weld_solid_xsec NO
allow_3d_dimensions YES
ang_unit_trail_zeros YES
associative_dimensioning YES
default_chamf_dim_configuration LEADER
default_chamf_text_orientation PARALLEL_TO_AND_ABOVE_LEADER
default_diam_dim_arrow_state INSIDE
default_chamfer_text CD
clip_diam_dimensions YES
clip_dim_arrow_style NONE
clip_dimensions YES
default_angdim_text_orientation HORIZONTAL
default_cldim_text_orientation PARALLEL_TO_AND_ABOVE_LEADER
default_clean_dim_increment 5.000000
default_clean_dim_offset 10.000000
default_diadim_text_orientation ABOVE_EXTENDED_ELBOW
default_dim_elbows YES
default_dual_dim_position BELOW
default_lindim_text_orientation PARALLEL_TO_AND_ABOVE_LEADER
default_orddim_text_orientation PARALLEL_TO_AND_ABOVE_LEADER
default_raddim_text_orientation ABOVE_EXTENDED_ELBOW
default_tolerance_display_style STD_ASME
default_tolerance_mode NOMINAL
default_z_radius_center_symbol CROSS
dim_fraction_format DEFAULT
dim_text_break_witness_lines YES
dim_text_gap 0.500000
dim_trail_zero_max_places same_as_dim
draft_scale 1.000000
dual_digits_diff -1
dual_dimension_brackets YES
dual_dimensioning NO
dual_metric_dim_show_fractions NO
dual_secondary_units MM
iso_ordinate_delta YES
lead_trail_zeros STD_METRIC
lead_trail_zeros_scope DIMS
modify_driving_dim_by_precision YES
exclude_affixes_from_basic_box NO
ord_dim_origin_style EMPTY
ord_dim_standard STD_ISO
default_ansi_ord_dim_aligned YES
radial_dimension_display STD_ASME
show_clipped_dimensions NO
basic_dim_to_leader_offset NO
shrinkage_value_display PERCENT_SHRINK
use_major_units NO
witness_line_delta 1.500000
witness_line_intersection NO
witness_line_offset 0.000000
intersected_lines_delta 0.125000
ang_unit_lead_zeros YES
default_leader_arrow_style AUTOMATIC
default_note_leader_type STD_ASME
dim_dot_box_style DEFAULT
draw_attach_sym_height DEFAULT
draw_attach_sym_width DEFAULT
draw_dot_diameter DEFAULT
extension_line_offset 0.062500
leader_extension_font SOLIDFONT
set_datum_leader_length 4.500000
axis_interior_clipping NO
axis_line_offset 5.000000
circle_axis_offset 4.000000
radial_pattern_axis_circle YES
smt_bend_line_axis_style DEFAULT
gtol_datums STD_ISO_JIS
gtol_dim_placement ON_BOTTOM
gtol_lead_trail_zeros SAME_AS_LEAD_TRAIL_ZEROS
new_iso_set_datums YES
set_datum_triangle_display FILLED
stacked_gtol_align NO
gtol_indicator_attached YES
gtol_secondary_value_precision ROUND
2d_region_columns_fit_text NO
dash_supp_dims_in_region YES
def_bom_balloons_attachment EDGE
def_bom_balloons_edge_att_sym FILLED_DOT
def_bom_balloons_snap_lines NO
def_bom_balloons_stagger NO
def_bom_balloons_stagger_value 0.600000
def_bom_balloons_surf_att_sym FILLED_DOT
def_bom_balloons_view_offset 0.800000
default_bom_balloon_type SIMPLE_CIRCLE

min_dist_between_bom_balloons 0.800000
model_digits_in_region NO
ptc_reported_material_in_region MULTI-MATERIAL
reference_bom_balloon_text REF
show_cbl_term_in_region YES
show_dim_sign_in_tables YES
sort_method_in_region DELIMITED
substituted_comp_cparam_report ORIGINAL
zero_quantity_cell_format EMPTY

model_grid_balloon_display YES
model_grid_balloon_size 0.200000
model_grid_neg_prefix -
model_grid_num_dig_display 0
model_grid_offset DEFAULT
model_grid_text_orientation HORIZONTAL
model_grid_text_position CENTERED
pipe_pt_line_style DEFAULT
pipe_pt_shape CROSS
pipe_pt_size DEFAULT
show_pipe_theor_cl_pts BEND_CL
blank_zero_tolerance NO
dim_tol_lead_trail_zeros SAME_AS_LEAD_TRAIL_ZEROS
dim_tol_trail_zero_max_places same_as_dim_tol
display_tol_by_1000 NO
symmetric_tol_display_standard STD_ASME

consider_drawing_scale_callout YES
decimal_marker COMMA_FOR_METRIC_DUAL
datum_target_outside_text NEAR_ELBOW
default_pipe_bend_note NO

harn_tang_line_display NO
line_style_standard STD_ISO

node_radius DEFAULT
pos_loc_format %s%x%y, %r
sym_flip_rotated_text YES
weld_spot_side_significant YES
weld_symbol_standard STD_ANSI
yes_no_parameter_display TRUE_FALSE
