Creo 工程圖表示

elin0603

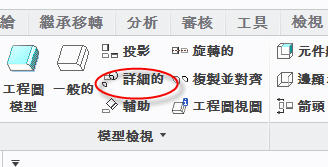

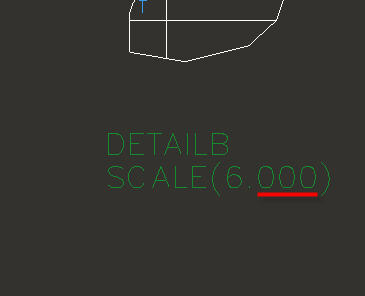

请问高人有没有人知道 图面放大比例 小数点怎么调整
原本6.000 想调整成6.0

yayadianzhang

看看下面这个贴：或许有帮助——工程图配置文件*.dtl常用选项及使用详解http://www.proewildfire.cn/thread-9736-1-1.html

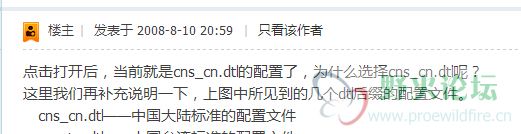

还有选择图片中的中国标准配置文件就基本够用了，很多东西都不用改

limingyiban

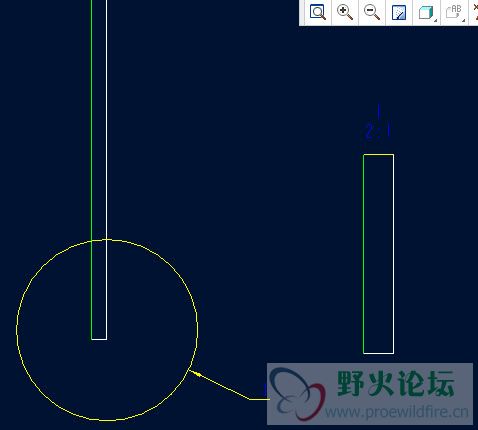

可能是你的dtl文件没有配置好，我配置的dtl，你用一下吧，详细视图的效果见附件图

text_height 3.500000
text_thickness 0.000000
text_width_factor 0.710000
aux_view_note_format VIEW %viewname-%viewname
broken_view_offset 5.000000
create_area_unfold_segmented NO
def_view_text_height 3.500000
def_view_text_thickness 0.000000
default_detail_view_name_style ROMAN
default_view_label_placement top_center
default_view_note_orientation above_extended_elbow
detail_circle_line_style SOLIDFONT
detail_circle_note_text DEFAULT
detail_view_boundary_type CIRCLE
detail_view_circle ON
detail_view_scale_factor 2.000000
half_view_line SYMMETRY_ISO
model_display_for_new_views NO_HIDDEN
projection_type FIRST_ANGLE
show_total_unfold_seam NO
tan_edge_display_for_new_views NO_DISP_TAN
view_note STD_DIN
view_scale_denominator 3600
view_scale_format RATIO_COLON
crossec_arrow_length 3.500000
crossec_arrow_style TAIL_ONLINE
crossec_arrow_width 1.000000
crossec_text_place ABOVE_TAIL
crossec_type OLD_STYLE
cutting_line STD_ISO
cutting_line_adapt YES
cutting_line_segment 5.000000
cutting_line_segment_thickness 0.000000
def_xhatch_break_around_text YES
def_xhatch_break_margin_size 1.500000
default_show_2d_section_xhatch ASSEMBLY_AND_PART
default_show_3d_section_xhatch YES
draw_cosms_in_area_xsec NO
half_section_line SOLID
remove_cosms_from_xsecs ALL
show_quilts_in_total_xsecs YES
datum_point_shape CROSS
datum_point_size 1.000000
hidden_tangent_edges DEFAULT
hlr_for_datum_curves YES
hlr_for_pipe_solid_cl NO
hlr_for_threads YES
location_radius DEFAULT(2.)
mesh_surface_lines ON
pipe_insulation_solid_xsec NO
ref_des_display NO
show_sym_of_suppressed_weld NO
thread_standard STD_ISO_IMP_ASSY
weld_light_xsec NO
weld_solid_xsec YES
allow_3d_dimensions YES
ang_unit_trail_zeros YES
associative_dimensioning YES
default_chamf_dim_configuration LEADER
default_chamf_text_orientation NEXT_TO_AND_CENTERED_ABOUT_ELBOW
default_chamfer_text CD
clip_diam_dimensions YES
clip_dim_arrow_style NONE
clip_dimensions YES
default_angdim_text_orientation HORIZONTAL
default_cldim_text_orientation NEXT_TO_AND_CENTERED_ABOUT_ELBOW
default_clean_dim_increment 10
default_clean_dim_offset 10
default_diadim_text_orientation NEXT_TO_AND_CENTERED_ABOUT_ELBOW
default_dim_elbows YES
default_lindim_text_orientation HORIZONTAL
default_orddim_text_orientation PARALLEL_TO_AND_CENTERED_ABOUT_LEADER
default_raddim_text_orientation NEXT_TO_AND_CENTERED_ABOUT_ELBOW
default_tolerance_display_style STD_ISO
default_tolerance_mode NOMINAL
default_z_radius_center_symbol CROSS
dim_fraction_format DEFAULT
dim_leader_length 5.000000
dim_text_gap 0.500000
dim_trail_zero_max_places same_as_dim
draft_scale 1.000000
dual_digits_diff -1
dual_dimension_brackets YES
dual_dimensioning NO
dual_metric_dim_show_fractions NO
dual_secondary_units MM
iso_ordinate_delta NO
lead_trail_zeros BOTH
lead_trail_zeros_scope DIMS
ord_dim_standard STD_ISO
radial_dimension_display STD_ASME。
shrinkage_value_display PERCENT_SHRINK
use_major_units NO
witness_line_delta 3.000000
witness_line_intersection NO
witness_line_offset 0.000000
default_font font.ndx
arrow_style FILLED
default_leader_arrow_style AUTOMATIC
dim_dot_box_style DEFAULT
draw_arrow_length 3.500000
draw_arrow_width 1.000000
draw_attach_sym_height DEFAULT
draw_attach_sym_width DEFAULT
draw_dot_diameter DEFAULT
leader_elbow_length 3.000000
leader_extension_font SOLIDFONT
set_datum_leader_length 0.375000
axis_interior_clipping NO
axis_line_offset 3.000000
circle_axis_offset 3.000000
radial_pattern_axis_circle YES
asme_dtm_on_dia_dim_gtol ON_GTOL
gtol_datum_placement_default ON_BOTTOM
gtol_datums STD_ISO
gtol_dim_placement ON_BOTTOM
gtol_display_style STD
gtol_lead_trail_zeros SAME_AS_LEAD_TRAIL_ZEROS
new_iso_set_datums YES
set_datum_triangle_display FILLED
stacked_gtol_align YES
2d_region_columns_fit_text YES
dash_supp_dims_in_region YES
def_bom_balloons_attachment SURFACE
def_bom_balloons_edge_att_sym ARROWHEAD
def_bom_balloons_snap_lines YES
def_bom_balloons_stagger NO
def_bom_balloons_stagger_value 15.240000
def_bom_balloons_surf_att_sym INTEGRAL
def_bom_balloons_view_offset 20.000000
default_bom_balloon_type SIMPLE_CIRCLE
default_table_column_width 10
default_table_columns 4
default_table_row_height 7
default_table_rows 2
min_dist_between_bom_balloons 12.000000
model_digits_in_region NO
reference_bom_balloon_text "DEFAULT"
show_cbl_term_in_region YES
show_dim_sign_in_tables YES
sort_method_in_region DELIMITED
zero_quantity_cell_format EMPTY
draw_layer_overrides_model NO
ignore_model_layer_status YES
model_grid_balloon_display YES
model_grid_balloon_size 0.200000
model_grid_neg_prefix -
model_grid_num_dig_display 0
model_grid_offset DEFAULT
model_grid_text_orientation HORIZONTAL
model_grid_text_position CENTERED
pipe_pt_line_style DEFAULT
pipe_pt_shape CROSS
pipe_pt_size DEFAULT
show_pipe_theor_cl_pts BEND_CL
blank_zero_tolerance NO
dim_tol_lead_trail_zeros SAME_AS_LEAD_TRAIL_ZEROS
dim_tol_trail_zero_max_places same_as_dim_tol
display_tol_by_1000 NO
symmetric_tol_display_standard STD_ISO
tol_display YES
tol_text_height_factor STANDARD
tol_text_width_factor STANDARD
decimal_marker COMMA_FOR_METRIC_DUAL
default_pipe_bend_note NO
drawing_units MM
harn_tang_line_display NO
line_style_standard STD_ISO
max_balloon_radius 8.000000
min_balloon_radius 8.000000
node_radius DEFAULT
pos_loc_format %s%x%y, %r
sym_flip_rotated_text YES
weld_spot_side_significant YES
weld_symbol_standard STD_ANSI
yes_no_parameter_display YES_NO

elin0603

謝謝大家幫忙, 以解決  只要在scale後面加入 [.1]  即可
反例:
{0:&view_name}(&det_scale [.1])

BZLYX

学习了
