CREO4.0模型外观颜色暗的解决办法

mhz1086

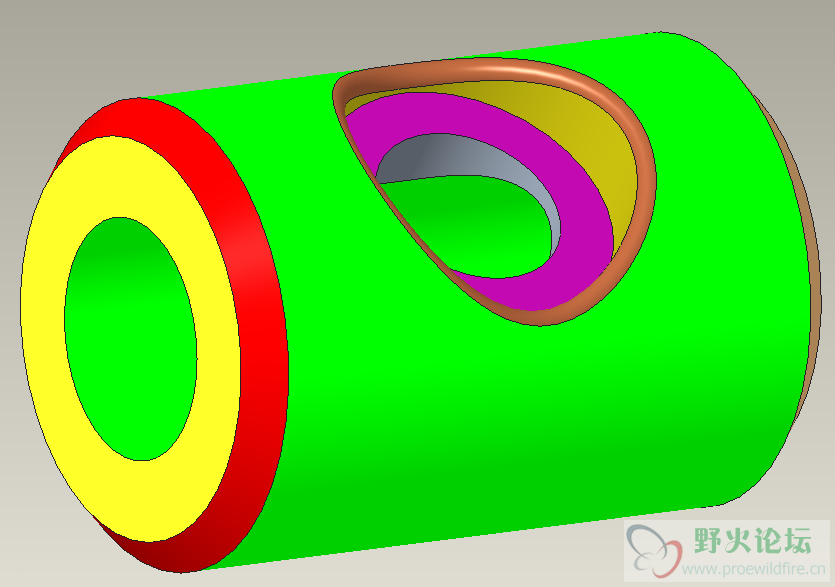

  新换系统WIN10 64位，安装CREO4.0 M010软件打开，发现一个问题，原先的系统使用模型外观颜色很亮，现在灰暗色，看起来完全没有激情！网络查找了很多天，都没有好的解决办法，今天自己琢磨:
   第一步，不使用设置的启动目录，把起始位置删除，空白，确认！
   第二步，正常打开软件，实验下，发现以前的颜色亮度又恢复了，
结论：可以证明是我的config.pro设置有问题！

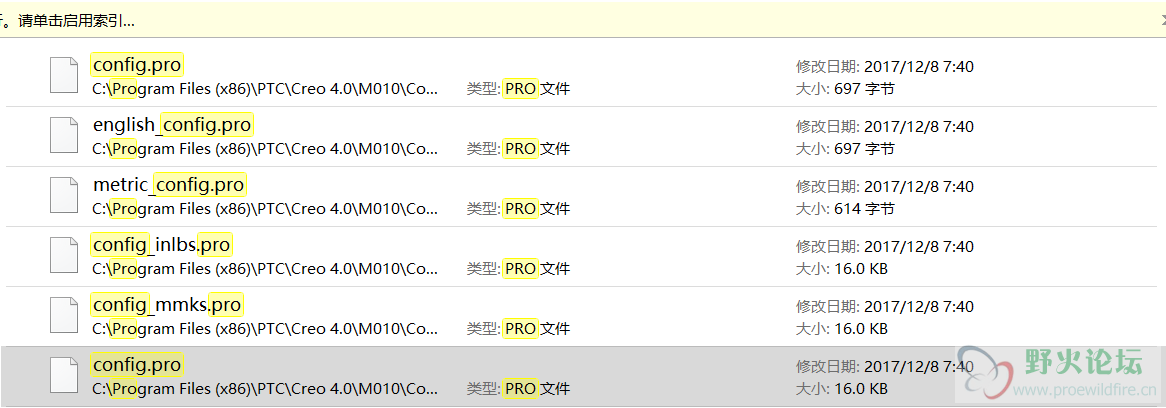

   第三步，在CREO4.0 M010软件安装文件下，搜索：config.pro

mhz1086

houstontracy 发表于 2019-1-10 13:52
我对比了一下我的，当我把消除锯齿选到16X时，模型颜色变暗了，我现在改成了4X就好了，我估计是我的显卡或 ...

我的config.pro；复制下面的所有黏贴到你新建启动目录内，试试看！
!!================================================================================
! Standard PTC/CREO4.0 config.pro 此文件放置D盘！
! MHZ定制初始日期 2015-01-31 修改日期 2017-12-6  QQ:47572706
!================================================================================
! ***** CREO 4.0 K-12 Options *****
file_open_default_folder working_directory
check_interference_of_matches no
show_sketch_dims_in_feature yes
autoplace_single_comp no
sketcher_starts_in_2d yes
system_background_color 256 256 256
Step_export_format ap214_cd
let_proe_rename_pdm_objects yes
!================================================================================
!!路径-零件模板-组件模板-工程图格式文件！
template_solidpart D:\CREO\MONLibs\Template\mhz_mmkgs.prt
template_designasm D:\CREO\MONLibs\Template\mhz_mmkgs_asm.asm

!!指定缺省绘图使用的模板文件名
template_drawing D:\CREO\MONLibs\Template\a4_prt_h.frm

!!设置绘图模板文件
drawing_setup_file D:\CREO\MONLibs\mhzdrawing.dtl
format_setup_file D:\CREO\MONLibs\mhzdrawing.dtl

!!设置工程图格式文件路径
pro_format_dir D:\CREO\MONLibs\Template

!!设置自定义符号文件路径
pro_symbol_dir D:\CREO\MONLibs\symbol_dir

!钣金模板使用的模板路径
template_sheetmetalpart mmns_part_sheetmetal.prt

!设置缺省的绘图比例，no为自动适应图框，1为与模型1：1
default_draw_scale no

!设置激活可在下一次会话期间检索该会话的记录机构
last_session_retrieval yes

!=================================
!用户界面设置
!=================================
!设置按钮关联的帮助提示
button_name_in_help no
!设置运行为非英文菜单，yes为中文菜单,NO为英文
menu_translation yes

default_font 9

!默认打开新的CREO窗口为最大化
open_window_maximized yes

!设置CREO系统缩放窗口比例
windows_scale 1
!设置消息区域可视信息行数
visible_message_lines 2

!设置所有情况下均提供说明选定项的信息
provide_pick_message_always yes

!设置退出时是否提示保存对象
prompt_on_exit NO

!设置对话框为非英文菜单，yes为中文菜单,NO为英文
dialog_translation yes

!设置质量属性计算，automatic为自动，每次重生成时执行
mass_property_calculate automatic

!=================================
!零件库设置

pro_library_dir D:\CREO\MONLibs\GBLib

!=======================================

save_objects changed
!==========================================
!PTCWORK4.0加载框架
afx_enabled yes

!设置材料库文件路径
pro_material_dir D:\CREO\MONLibs\Materials
!==========================================
!中文名
PTCWORK_less_restrictive_names yes
!默认字体
pro_font_dir C:\WINDOWS\Fonts
!设置轨迹临时文件存放路径
trail_dir D:\CREO\trailtemp
!==========================================
!输出DWG DXF比例
dxf_out_scale_views yes
!==========================================
!单位、公差设置
!==========================================
!设置新对象的缺省单位
pro_unit_length UNIT_mm
!设置新对象质量缺省单位为kg
pro_unit_mass unit_kilogram
!设置新模型的单位制
pro_unit_sys mmks
!设置将角度尺寸的显示设置为小数度（ang_deg)
ang_units ANG_DEG
!设置创建模型时使用的公差标准
tolerance_standard ANSI

!设置线性尺寸和角度公差尺寸指定范围
linear_tol 1 0.025
linear_tol 2 0.01
linear_tol 3 0.005
linear_tol 4 0.0005
!设置角度公差尺寸小数位置
angular_tol 0 1
angular_tol 1 0.5
angular_tol 2 0.25
!设置是否显示坐标系名称标记
display_coord_sys_tags yes
!设置是否显示坐标系
display_coord_sys no
!设置倒角尺寸文本的显示，PRO/ENGINEER缺省为ASME/ANSI，这里改为ISO/DIN
chamfer_45deg_dim_text iso/din
!设置移动时模型是否上色，NO为线框模式
shade_surface_feat yes
!设置每次打开提示要响的键盘铃，NO为关闭键盘铃
bell no
!embed-将图片文件嵌入绘图内部以用于预览。export-保存绘图时，
!将绘图文件作为图片文件保存在工作目录中。both-同时进行嵌入和导出。
save_drawing_picture_file embed
!设置外部参考模型范围
default_object_scope_setting all
!设置图中线性比例
plot_linestyle_scale 1
topobus_enable yes
!YES使用孔表标注直径，NO使用钻孔底径
hole_diameter_override yes
!==========================================
!打印机
plotter ms_print_mgr
plotter_command windows_print_manager
pro_plot_config_dir D:\CREO\dayun
!设置打印机打印样式文件路径
pen_table_file D:\CREO\dayun\table.pnt
!设置打印线宽配置文件
raster_plot_dpi 100
use_8_plotter_pens yes
!设置使用8笔（影响打印）
pdf_use_pentable yes
!==========================================
!显示、外观
display shade
orientation trimetric
enable_absolute_accuracy yes
tol_display YES
tol_mode nominal
maintain_limit_tol_nominal yes
allow_anatomic_features yes
hlr_for_quilts yes
ang_dim_in_screen yes
axis_display no
color yes
color_windows all_windows
datum_display yes
datum_point_display no
depthcue_always yes
dim_offscreen_limit 1.0
flip_arrow_scale 3
mesh_spline_surf no
number_user_colors 16
spin_rate_zoom_sensitive NO
spin_with_part_entities yes
spin_with_silhouettes yes
!==========================================
!背景色
system_colors_file D:\CREO\colormap\syscol.scl
!==========================================
!启动时默认不显示基准
display_axes NO
display_points no
display_planes yes
display_axis_tags no
display_point_tags no
===================================
ord_dim_standard std_ansi
===================================
!文字编辑器
pro_editor_command notepad
protable_in_background no
relation_file_editor editor
!General Geometry
create_numbered_layers no
default_dec_places 3
default_ang_dec_places 2
default_dim_num_digits_changes yes
fail_unattached_feature yes
fail_if_sec_regen_warning no
fail_ref_copy_when_missing_orig yes
feature_create_auto_begin yes
feature_create_auto_ok no
grid_snap no
mark_approximate_dims yes
model_grid_spacing 1
remember_last_get_point_option yes
retain_pattern_definition yes
show_axes_for_extr_arcs no
show_dim_sign no
show_geom_checks_on_creation yes
use_major_units no
use_new_intchg yes
!==========================================
! 草绘选型
sketcher_dec_places 2
sketcher_animated_modify yes
sketcher_disp_constraints yes
sketcher_disp_dimensions yes
sketcher_disp_vertices yes
sketcher_undo_stack_limit 100
sketcher_intent_manager yes
!==========================================
!零件模式选项
allow_old_style_round no
allow_udf_style_cosm_threads no
!==========================================
! 装配模式选项
allow_package_children none
allow_redo_intersections yes
allow_ref_scope_change yes
clr_print_plus_minus yes
comp_assemble_start move_then_place
comp_rollback_on_redef yes
default_ext_ref_scope all
display_in_adding_view default
fix_refs_to_intersections no
freeze_failed_assy_comp no
package_constraints disallow
scope_invalid_refs prohibit
shade_moving_comp yes
!==========================================
! 工程图模式选项
allow_move_attach_in_dtl_move yes
allow_move_view_with_move yes
allow_rfs_default_gtols_always yes
auto_associate_dimensions yes
auto_regen_views yes
create_drawing_dims_only yes
create_fraction_dim no
display_dwg_tol_tags yes
draw_models_read_only no
draw_points_in_model_units no
drawing_view_origin_csys no
dwg_select_across_pick_box no
gtol_dim_placement under_value
highlight_new_dims yes
highlight_erased_dwg_views no
make_parameters_from_fmt_tables no
make_proj_view_notes no
parenthesize_ref_dim yes
pick_chain_tangent_only yes
selection_of_removed_entities no
switch_dims_for_notes yes
sym_leader_orient_move_text no
symbol_palette_input yes
todays_date_note_format %dd-%Mmm-%yyyy
variant_drawing_item_sizes no
symbol_font asme
!==========================================

shuo_total_unfold_seam no
!阶梯剖时如何让剖面拐角处不以实线显示！
!==========================================
!快捷键
!删除
!其它快捷键
comp_assemble_with_interface DEFAULT_MULTI
enable_fsaa off
nmgr_circular_references do_not_show
mapkey q @MAPKEY_LABEL平面打开;~ Command `ProCmdEnvDtmDisp`  1;
mapkey \del @SYSTEMdel *.log.* *.err.* *.inf.* *.lst.* *.crc *.acc *.ger \
mapkey(continued) *.ers *.m_p *.bak *.bk1 *.bk2 std.out current_session.pro;
mapkey c @MAPKEY_LABEL圆;~ Command `ProCmdSketCenterPoint` 1 ;\
mapkey(continued) @PAUSE_FOR_SCREEN_PICK;@PAUSE_FOR_SCREEN_PICK;@PAUSE_FOR_SCREEN_PICK;;
mapkey a @MAPKEY_LABEL中心线;\
mapkey(continued) ~ Activate `main_dlg_cur` `tbLines` `ProCmdSketCenterline.tbLine`;\
mapkey(continued) ~ Command `ProCmdSketCenterline` 1 ;@PAUSE_FOR_SCREEN_PICK;\
mapkey(continued) @PAUSE_FOR_SCREEN_PICK;@PAUSE_FOR_SCREEN_PICK;;
mapkey v @MAPKEY_LABEL重命名;~ Command `ProCmdModelRename` ;;
mapkey d @MAPKEY_LABEL参照;~ Command `ProCmdSketReferences` ;;
mapkey l @MAPKEY_LABEL直线;~ Command `ProCmdSketLine` 1 ;;
mapkey sw @MAPKEY_LABEL拉伸;~ Command `ProCmdFtExtrude` ;;
mapkey f @MAPKEY_LABEL缩放;~ Command `ProCmdAOScaleModel` ;;
mapkey p @MAPKEY_LABEL拭除旧版本;@SYSTEMpurge;
mapkey ss @MAPKEY_LABEL拭除不显示;~ Close `main_dlg_cur` `appl_casc`;\
mapkey(continued) ~ Command `ProCmdModelEraseNotDisp`;
mapkey m @MAPKEY_LABEL测量;\
mapkey(continued) ~ Activate `main_dlg_cur` `page_Analysis_control_btn` 0;\
mapkey(continued) ~ Command `ProCmdNaMeasureDistance` ;@PAUSE_FOR_SCREEN_PICK;\
mapkey(continued) @PAUSE_FOR_SCREEN_PICK;
mapkey z @MAPKEY_LABEL装配;\
mapkey(continued) ~ Activate `main_dlg_cur` `page_Model_control_btn` 1;\
mapkey(continued) ~ Command `ProCmdCompAssem` ;\
mapkey(continued) ~ Trail `UI Desktop` `UI Desktop` `DLG_PREVIEW_POST` `file_open`;\
mapkey(continued) ~ Select `file_open` `Ph_list.Filelist` 1 `product_10382__.prt`;\
mapkey(continued) ~ Command `ProFileSelPushOpen@context_dlg_open_cmd` ;@PAUSE_FOR_SCREEN_PICK;
mapkey y @MAPKEY_LABEL打印PDF;~ Command `ProCmdModelSaveAs` ;\
mapkey(continued) ~ Close `main_dlg_cur` `adbFile_cb`;~ Open `file_saveas` `type_option`;\
mapkey(continued) ~ Close `file_saveas` `type_option`;\
mapkey(continued) ~ Select `file_saveas` `type_option`1  `db_617`;\
mapkey(continued) ~ Activate `file_saveas` `OK`;\
mapkey(continued) ~ Open `intf_profile` `pdf_export.pdf_raster_dpi`;\
mapkey(continued) ~ Close `intf_profile` `pdf_export.pdf_raster_dpi`;\
mapkey(continued) ~ Select `intf_profile` `pdf_export.pdf_raster_dpi`1  `400`;\
mapkey(continued) ~ Select `intf_profile` `pdf_export.pdf_color_depth`1  `pdf_mono`;\
mapkey(continued) ~ Activate `intf_profile` `OkPshBtn`;;
mapkey 1 @MAPKEY_LABEL平面打开;~ Command `ProCmdEnvDtmDisp`  1;
mapkey 2 @MAPKEY_LABEL平面关闭;~ Command `ProCmdEnvDtmDisp`  0;
mapkey w @MAPKEY_LABEL平面关闭;~ Command `ProCmdEnvDtmDisp`  0;
mapkey b @MAPKEY_LABEL备份;~ Close `main_dlg_cur` `appl_casc`;\
mapkey(continued) ~ Command `ProCmdModelBackup`;
mapkey n @MAPKEY_LABEL再生保存;~ Command `ProCmdRegenAuto` ;\
mapkey(continued) ~ Command `ProCmdModelSave` ;~ Command `ProCmdModelSave`;
mapkey(continued) @PAUSE_FOR_SCREEN_PICK;
mapkey z @MAPKEY_LABEL装配;\
mapkey(continued) ~ Activate `main_dlg_cur` `page_Model_control_btn` 1;\
mapkey(continued) ~ Command `ProCmdCompAssem` ;\
mapkey(continued) ~ Trail `UI Desktop` `UI Desktop` `DLG_PREVIEW_POST` `file_open`;\
mapkey(continued) ~ Select `file_open` `Ph_list.Filelist` 1 `product_10382__.prt`;\
mapkey(continued) ~ Command `ProFileSelPushOpen@context_dlg_open_cmd` ;@PAUSE_FOR_SCREEN_PICK;
mapkey y @MAPKEY_LABEL打印PDF;~ Command `ProCmdModelSaveAs` ;\
mapkey(continued) ~ Close `main_dlg_cur` `adbFile_cb`;~ Open `file_saveas` `type_option`;\
mapkey(continued) ~ Close `file_saveas` `type_option`;\
mapkey(continued) ~ Select `file_saveas` `type_option`1  `db_617`;\
mapkey(continued) ~ Activate `file_saveas` `OK`;\
mapkey(continued) ~ Open `intf_profile` `pdf_export.pdf_raster_dpi`;\
mapkey(continued) ~ Close `intf_profile` `pdf_export.pdf_raster_dpi`;\
mapkey(continued) ~ Select `intf_profile` `pdf_export.pdf_raster_dpi`1  `400`;\
mapkey(continued) ~ Select `intf_profile` `pdf_export.pdf_color_depth`1  `pdf_mono`;\
mapkey(continued) ~ Activate `intf_profile` `OkPshBtn`;;


mapkey(continued) ~ Command `ProCmdModelSave` ;~ Command `ProCmdModelSave`;
mapkey t @MAPKEY_LABEL导出2004CAD;~ Close `main_dlg_cur` `appl_casc`;\
mapkey(continued) ~ Command `ProCmdModelSaveAs` ;~ Open `file_saveas` `type_option`;\
mapkey(continued) ~ Close `file_saveas` `type_option`;\
mapkey(continued) ~ Select `file_saveas` `type_option` 1 `db_560`;\
mapkey(continued) ~ Activate `file_saveas` `OK`;~ Open `export_2d_dlg` `Version_Menu`;\
mapkey(continued) ~ Close `export_2d_dlg` `Version_Menu`;\
mapkey(continued) ~ Select `export_2d_dlg` `Version_Menu` 1 `2004`;\
mapkey(continued) ~ Select `export_2d_dlg` `Notes_Group` 1 `stroke_spec_char`;\
mapkey(continued) ~ Activate `export_2d_dlg` `OK_Button`;

!*********************************************************
!*                        选项配置                       *
!*********************************************************

nmgr_import_valid_issue do_not_show
mapkey q @MAPKEY_LABEL平面打开;~ Command `ProCmdEnvDtmDisp`  1;
mapkey \del @SYSTEMdel *.log.* *.err.* *.inf.* *.lst.* *.crc *.acc *.ger \
mapkey(continued) *.ers *.m_p *.bak *.bk1 *.bk2 std.out current_session.pro;
mapkey c @MAPKEY_LABEL圆;~ Command `ProCmdSketCenterPoint` 1 ;\
mapkey(continued) @PAUSE_FOR_SCREEN_PICK;@PAUSE_FOR_SCREEN_PICK;@PAUSE_FOR_SCREEN_PICK;;
mapkey a @MAPKEY_LABEL中心线;\
mapkey(continued) ~ Activate `main_dlg_cur` `tbLines` `ProCmdSketCenterline.tbLine`;\
mapkey(continued) ~ Command `ProCmdSketCenterline` 1 ;@PAUSE_FOR_SCREEN_PICK;\
mapkey(continued) @PAUSE_FOR_SCREEN_PICK;@PAUSE_FOR_SCREEN_PICK;;
mapkey v @MAPKEY_LABEL重命名;~ Command `ProCmdModelRename` ;;
mapkey d @MAPKEY_LABEL参照;~ Command `ProCmdSketReferences` ;;
mapkey l @MAPKEY_LABEL直线;~ Command `ProCmdSketLine` 1 ;;
mapkey sw @MAPKEY_LABEL拉伸;~ Command `ProCmdFtExtrude` ;;
mapkey f @MAPKEY_LABEL工程图格式;~ Close `main_dlg_cur` `appl_casc`;\
mapkey(continued) ~ Command `ProCmdDwgProperties` ;\
mapkey(continued) ~ Activate `mdlprops_dlg` `OPTIONS_lay_Controls.push_Change.lay_instance`;\
mapkey(continued) ~ FocusOut `preferences` `InputOpt`;~ Activate `preferences` `Open`;\
mapkey(continued) ~ Trail `UI Desktop` `UI Desktop` `DLG_PREVIEW_POST` `file_open`;\
mapkey(continued) ~ Activate `file_open` `computer_pb`;\
mapkey(continued) ~ Trail `UI Desktop` `UI Desktop` `PREVIEW_POPUP_TIMER` \
mapkey(continued) `file_openh_list.Filelist:<NULL>`;\
mapkey(continued) ~ Select `file_open` `Ph_list.Filelist` 1 `d:`;\
mapkey(continued) ~ Activate `file_open` `Ph_list.Filelist` 1 `d:`;\
mapkey(continued) ~ Select `file_open` `Ph_list.Filelist` 1 `CREO`;\
mapkey(continued) ~ Activate `file_open` `Ph_list.Filelist` 1 `CREO`;\
mapkey(continued) ~ Select `file_open` `Ph_list.Filelist` 1 `MONLibs`;\
mapkey(continued) ~ Activate `file_open` `Ph_list.Filelist` 1 `MONLibs`;\
mapkey(continued) ~ Select `file_open` `Ph_list.Filelist` 1 `mhzdrawing.dtl`;\
mapkey(continued) ~ Command `ProFileSelPushOpen_Standard@context_dlg_open_cmd` ;\
mapkey(continued) ~ Activate `preferences` `ApplySave`;~ FocusOut `preferences` `InputOpt`;\
mapkey(continued) ~ Activate `preferences` `Close`;~ Activate `mdlprops_dlg` `DlgClose_push`;
mapkey p @MAPKEY_LABEL拭除旧版本;@SYSTEMpurge;
mapkey ss @MAPKEY_LABEL拭除不显示;~ Close `main_dlg_cur` `appl_casc`;\
mapkey(continued) ~ Command `ProCmdModelEraseNotDisp`;
mapkey m @MAPKEY_LABEL测量;\
mapkey(continued) ~ Activate `main_dlg_cur` `page_Analysis_control_btn` 0;\
mapkey(continued) ~ Command `ProCmdNaMeasureDistance` ;@PAUSE_FOR_SCREEN_PICK;\
mapkey(continued) @PAUSE_FOR_SCREEN_PICK;
mapkey z @MAPKEY_LABEL装配;\
mapkey(continued) ~ Activate `main_dlg_cur` `page_Model_control_btn` 1;\
mapkey(continued) ~ Command `ProCmdCompAssem` ;\
mapkey(continued) ~ Trail `UI Desktop` `UI Desktop` `DLG_PREVIEW_POST` `file_open`;\
mapkey(continued) ~ Select `file_open` `Ph_list.Filelist` 1 `product_10382__.prt`;\
mapkey(continued) ~ Command `ProFileSelPushOpen@context_dlg_open_cmd` ;@PAUSE_FOR_SCREEN_PICK;
mapkey y @MAPKEY_LABEL打印PDF;~ Command `ProCmdModelSaveAs` ;\
mapkey(continued) ~ Close `main_dlg_cur` `adbFile_cb`;~ Open `file_saveas` `type_option`;\
mapkey(continued) ~ Close `file_saveas` `type_option`;\
mapkey(continued) ~ Select `file_saveas` `type_option`1  `db_617`;\
mapkey(continued) ~ Activate `file_saveas` `OK`;\
mapkey(continued) ~ Open `intf_profile` `pdf_export.pdf_raster_dpi`;\
mapkey(continued) ~ Close `intf_profile` `pdf_export.pdf_raster_dpi`;\
mapkey(continued) ~ Select `intf_profile` `pdf_export.pdf_raster_dpi`1  `400`;\
mapkey(continued) ~ Select `intf_profile` `pdf_export.pdf_color_depth`1  `pdf_mono`;\
mapkey(continued) ~ Activate `intf_profile` `OkPshBtn`;;
mapkey 1 @MAPKEY_LABEL平面打开;~ Command `ProCmdEnvDtmDisp`  1;
mapkey 2 @MAPKEY_LABEL平面关闭;~ Command `ProCmdEnvDtmDisp`  0;
mapkey w @MAPKEY_LABEL平面关闭;~ Command `ProCmdEnvDtmDisp`  0;
mapkey b @MAPKEY_LABEL备份;~ Close `main_dlg_cur` `appl_casc`;\
mapkey(continued) ~ Command `ProCmdModelBackup`;
mapkey n @MAPKEY_LABEL再生保存;~ Command `ProCmdRegenAuto` ;\
mapkey(continued) ~ Command `ProCmdModelSave` ;~ Command `ProCmdModelSave`;
mapkey 1 @MAPKEY_LABEL平面打开;~ Command `ProCmdEnvDtmDisp`  1;

mhz1086

接下来，把图中165KBconfig.pro  文件复制出来，打开与现在使用的文件对比，发现很多不同，逐步修改过去！

修改完，
把启动目录还是还原，打开软件，发现想要的外观又回来了！哦恭喜！

xiaohu888

这么亮，眼睛受得了吗？

mhz1086

xiaohu888 发表于 2017-12-9 10:06
这么亮，眼睛受得了吗？

太暗真不好看！

野火

如果是config.pro配置问题的话很快就可以找出来的，方法也挺多的

chenyu1219

谢谢分享

qwer87640154

设置自己的启动目录以后外观库就不能用了怎么解

mhz1086

qwer87640154 发表于 2017-12-11 08:52
设置自己的启动目录以后外观库就不能用了怎么解

看上面的介绍，我就是这样试出来的，真的可以！软件程序设计太复杂。能用就好！

mhz1086

xiaohu888 发表于 2017-12-9 10:06
这么亮，眼睛受得了吗？

呵呵，不好意思，软件程序太深奥，调整到能用就好，菜鸟做法！

ywtftr

我也遇到这个问题，但是对比也没用对比出来哪里的问题
