要怎么才可以让creo4.0转CAD可以一比一求高手

pengtao2008 · 发表于 2018-1-20 10:52

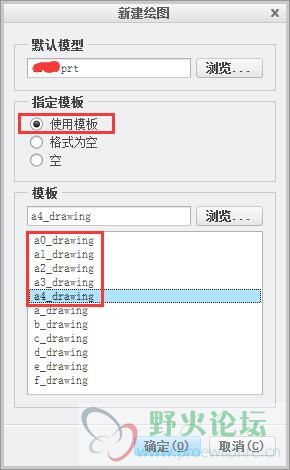

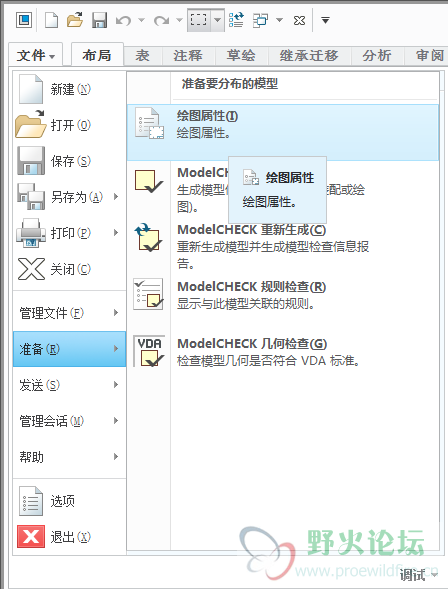

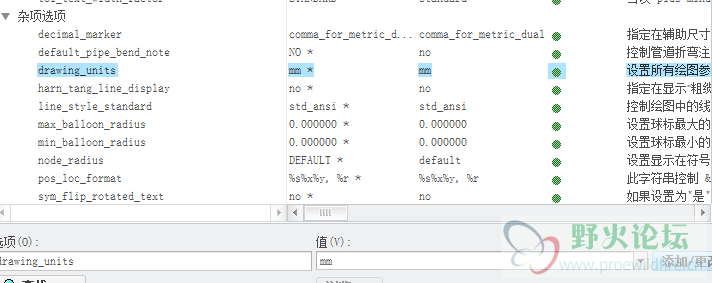

文件-准备-绘图属性详细信息选项－更改。在杂项选项中找到 drawing_units 将值改为mm 就OK了。记得保存配置文件。

vip416202 · 发表于 2018-1-22 22:34

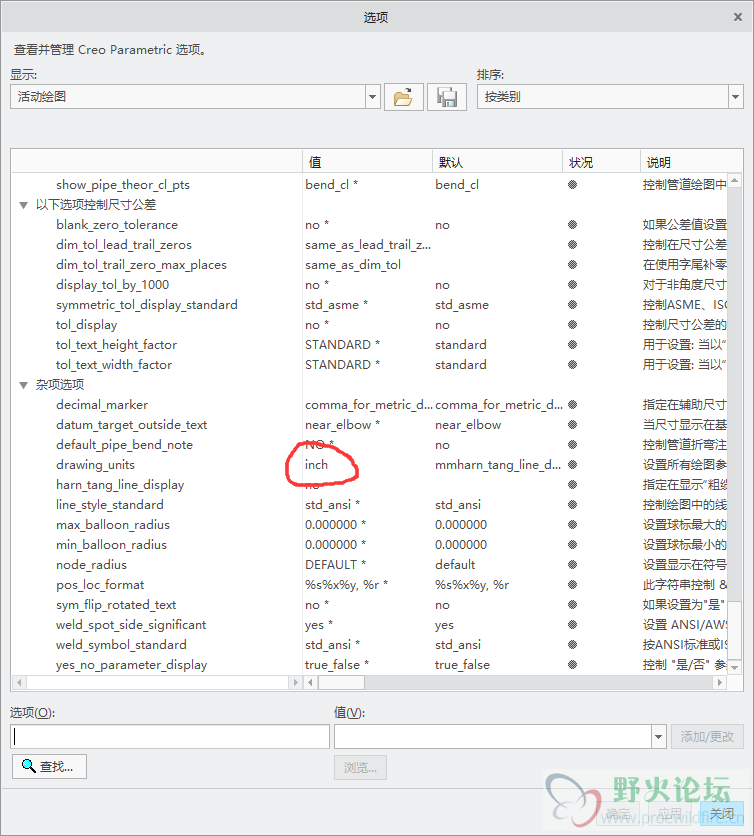

现在我就是每一次都这样才行一关掉就要重新来了我也修改过了那个东西他还是不会自己变回来

vip416202 · 发表于 2018-1-22 22:48

每次设置好一关软件就变回去了

fjq2008 · 发表于 2018-1-23 11:48

本帖最后由 fjq2008 于 2018-1-23 12:00 编辑

1、安装目录下，如C:\Program Files\PTC\Creo 4.0\M010\Common Files\text，设置config.sup文件，强制引用绘图设置如GB.dtl；
例：
intf_out_layer part_layer
intf2d_out_dxf_mapping_file $PRO_DIRECTORY\text\Dxf_export.pro
preferred_export_format dwg
drawing_setup_file $PRO_DIRECTORY\text\GB.dtl
format_setup_file $PRO_DIRECTORY\text\GB.dtl
pro_unit_length unit_mm
pro_unit_mass unit_kilogram
template_designasm $PRO_DIRECTORY\templates\mmks_asm_design.asm
template_new_ecadasm $PRO_DIRECTORY\templates\mmks_ecad_asm.asm
template_drawing $PRO_DIRECTORY\templates\a3_drawing.drw
template_sheetmetalpart $PRO_DIRECTORY\templates\mmks_part_sheetmetal.prt
template_solidpart $PRO_DIRECTORY\templates\solid_part_mmks.prt
template_boardpart $PRO_DIRECTORY\templates\mmks_ecad_board.prt
todays_date_note_format %yyyy-%mm-%dd
tolerance_standard iso
weld_ui_standard iso
search_path_file $CREO_COMMON_FILES\afx\parts\prolibrary\search.pro
creo_less_restrictive_names yes
dxf_export_format 2007
dwg_export_format 2007
dxf_out_scale_views yes
pen_table_file $PRO_DIRECTORY\text\table.pnt
rename_drawings_with_object both
pdf_use_pentable yes

2、设置GB.dtl，例：
drawing_text_color EDGE_HIGHLIGHT_COLOR
text_height 3.000000
text_thickness 0.350000
text_width_factor 0.850000
aux_view_note_format VIEW %viewname-%viewname
broken_view_offset 5.000000
create_area_unfold_segmented YES
def_view_text_height 0.000000
def_view_text_thickness 0.000000
default_detail_view_name_style LETTER
default_view_label_placement BOTTOM_LEFT
default_view_note_orientation NEXT_TO_AND_CENTERED_ABOUT_ELBOW
detail_circle_line_style PHANTOMFONT
detail_circle_note_text DEFAULT
detail_view_boundary_type CIRCLE
detail_view_circle ON
detail_view_scale_factor 2.000000
half_view_line SYMMETRY
model_display_for_new_views FOLLOW_ENVIRONMENT
projection_type FIRST_ANGLE
tan_edge_display_for_new_views DEFAULT
view_note STD_ISO
view_scale_denominator 3600
view_scale_format RATIO_COLON
shaded_view_scene DRAWING
crossec_arrow_length 3.0
crossec_arrow_style HEAD_ONLINE
crossec_arrow_width 0.8
crossec_text_place ABOVE_TAIL
crossec_type OLD_STYLE
cutting_line STD_ISO
cutting_line_adapt NO
cutting_line_segment 10.000000
cutting_line_segment_thickness 0.000000
def_xhatch_break_around_text NO
def_xhatch_break_margin_size 0.150000
default_show_2d_section_xhatch ASSEMBLY_AND_PART
default_show_3d_section_xhatch YES
draw_cosms_in_area_xsec NO
half_section_line SOLID
remove_cosms_from_xsecs TOTAL
show_offset_section_seams ANGLED_ONLY
